Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit

Henan Joyshine Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit from wholesalers

    Buy cheap Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit from wholesalers
    • Buy cheap Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit from wholesalers
    • Buy cheap Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit from wholesalers
    • Buy cheap Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit from wholesalers
    • Buy cheap Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit from wholesalers
    • Buy cheap Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit from wholesalers
    • Buy cheap Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit from wholesalers

    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit

    Ask Lasest Price
    Brand Name : Joyshine
    Supply Ability : 100 Set/Sets per Week
    Price : $26,000.00/sets 1-2 sets
    • Product Details
    • Company Profile

    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit

    Product Description
    Model
    HS-320A
    HS-398A
    HS-420A
    HS-520A
    HS-720A

    Packing size
    W:50-150mm
    W:70-200mm
    W:80-200mm
    W:90-250mm
    W:110-350mm
    L:50-200mm
    L:50-300mm
    L:50-300mm
    L:80-350mm
    L:100-420mm
    Packing speed
    20-60 bag/min
    10-60 bag/min
    15-80 bag/min
    30-80 bag/min
    10-60 bag/min
    Range of measuring
    700ml
    150-1500ml
    150-1500ml
    Max 1500ml
    Max 4000ml
    The max width of packing film
    320mm
    420mm
    420mm
    520mm
    720mm
    Air consumption
    200L/min
    0.6MPa
    200L/min
    0.6MPa
    200L/min 0.6MPa
    200L/min 0.6MPa
    300L/min 0.8MPa
    Main power/voltage
    2.7KW/220V
    50-60Hz
    2.5KW/220V
    50-60Hz
    2.2KW/220V 50-60Hz
    2.2KW/220V 50-60Hz
    4.0KW/220V 50-60Hz
    Main power/voltage
    350KG
    450KG
    450KG
    450KG
    800KG
    Dimension
    (L)1100* (W)800*(H)1940mm
    (L)1400*(W)970*(H)1700mm
    (L)1400*(W)970*(H)1700mm
    (L)1480* (W)1200*(H)1700mm
    (L)1780*(W)1350*(H)2000mm
    Film thickness
    0.04-0.10mm
    Bag making mode
    Pillow-type bag, Standing bag, punching device,Link-bag device
    Bag making mode
    POPP/CPP,POPP/VMCPP,BOBB/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
    Product Details
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit

    Technical parameter Packing speed:Max 30 bag/min Bag size Front width:100-180mm Side width:65-120mm Width of side seal:100-180mm Length:100-420mm Bag making mode:Block boottom type The maximum width of packing film:720mm Main power/voltage:4.5KW/220V 50-60Hz Dimension:1700×1420×2100mm The weight of switchboard:900kg
    Multi head weighing machine
    Each dump weighing range: 10-1000g Combination capacity: 3000ml Max speed 60 bags/min
    Length of material: Max 80mm Each bag error: 0.2-0.5g Weighing accuracy: 0.1-1g Mode of driving Step motor: Form of dipper Double-row non-memory dippers Power source: Ac200/220V±10% 1.5KVA Dimension : 950(L) * 950(W) *1000(H)mm Preset function Max 50 choices Level control Photo-electricity (passtype)
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit

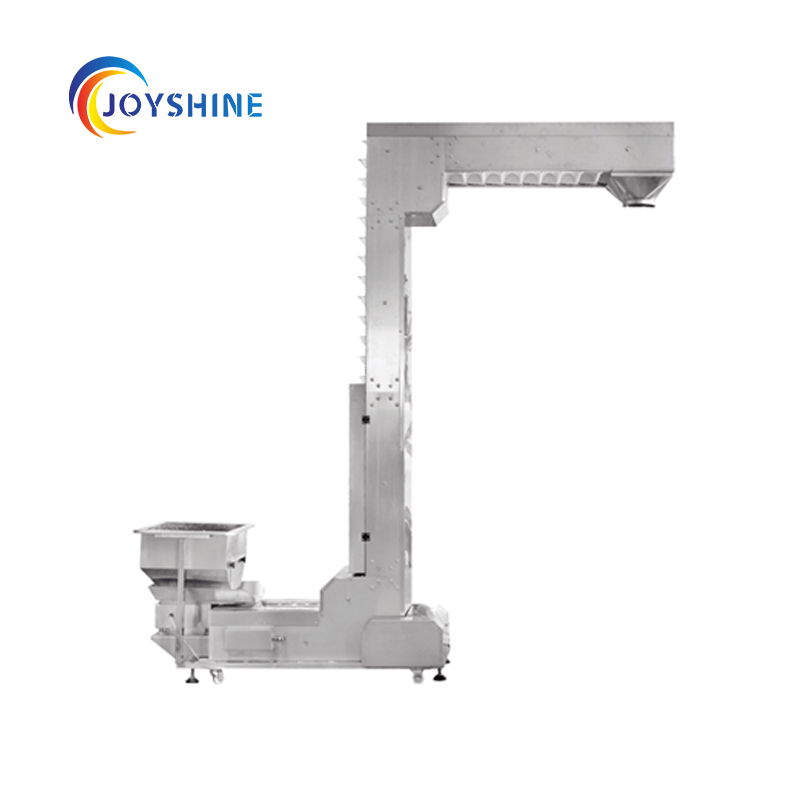

    Z type bucket conveyor
    Discharge height: 2 to 8m (To be customized refer to the requirements) Power: 750W (3.1m) Capacity: 2.5 to 8CBM/hr Electric Supply: 380V,50/60Hz, 3ph or 220V, 50/60Hz,1 ph Conveyor Frame: Painted Mild Steel or Full 304# Stainless Steel

    Supporting Platform

    Made of 304 stainless steel
    Ensuring stable operation of multihead weighers
    Adopting imported miniature motor and featured with low noise and long tifetime.
    It can transport finished goods to platform, reduce waste duringpacking, making the machine work more smoothly.
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit

    HS-B Type Finished product conveyor

    Conveyor width: 300mm
    Conveyor height: 0.8-1.5m
    Conveyor speed: 30m/min
    Frame Material: 304SS
    Power: 120W /220V
    Product Application
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
    About Us
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
    Certifications
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
    Product packaging
    Multihead Weigher Vertical Packaging Machine for Food Granule Bean Seed Rice Dry Fruit
    FAQ
    Q: Are you manufacturer? A: Yes, we are manufacturer with more than 10 year's experience. Q: Can you ship the machine to my address? A: Yes, we arrange to ship the machine by sea to your nearest port. Where you are east to do the import customs cleanrance. Q: About the machine voltage or power of machine? A: Usually in our country is 220v-50hz single phase or 380v-50hz 3 phase. If you have the special requirement, pls tell us. We will vetify the voltage according to your requirement. Q: How to install the machine? A: We can intrust the install the machine by vedio, email, picture etc. Q: Can you offer us the necessary paper to do the customs clearance? A: Yes, of course. We will send you the commercial invoice, packing list, bill of lading, insurance policy. Q: Where are you? Can we go to China and visit your factory? A: Yes, of course. We are in Zhengzhou, Henan, China. Welcome to our factory.
